How to send Chat message from MS SQL Server Express to Chat Client

To send messages to the Ozeki Chat client from your MS SQL Server Express, please follow this guide. We will give you every information you need to make it possible. If you can send messages from an SQL Server, it means that you can automate error message sending, or some events could trigger the server to send messages to chosen chat partners. This could lower error downtimes and could raise control over the system.

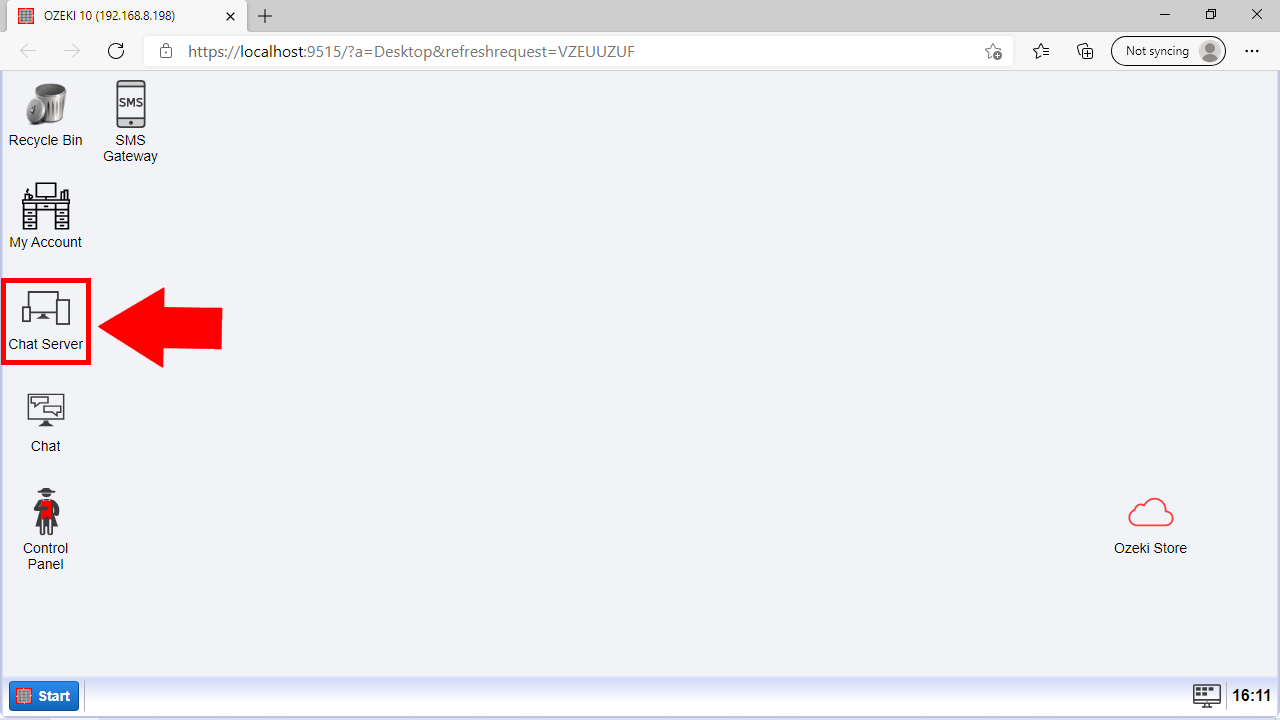

To set up a connection between the SQL Server and the Chat server, you need to open the chat server configurator. It is located on the desktop of Ozeki OS. Click the shortcut and it will bring up the program where you could manage connections. You can find the icon on Figure 1.

open chat server
Figure 1 - Open chat server

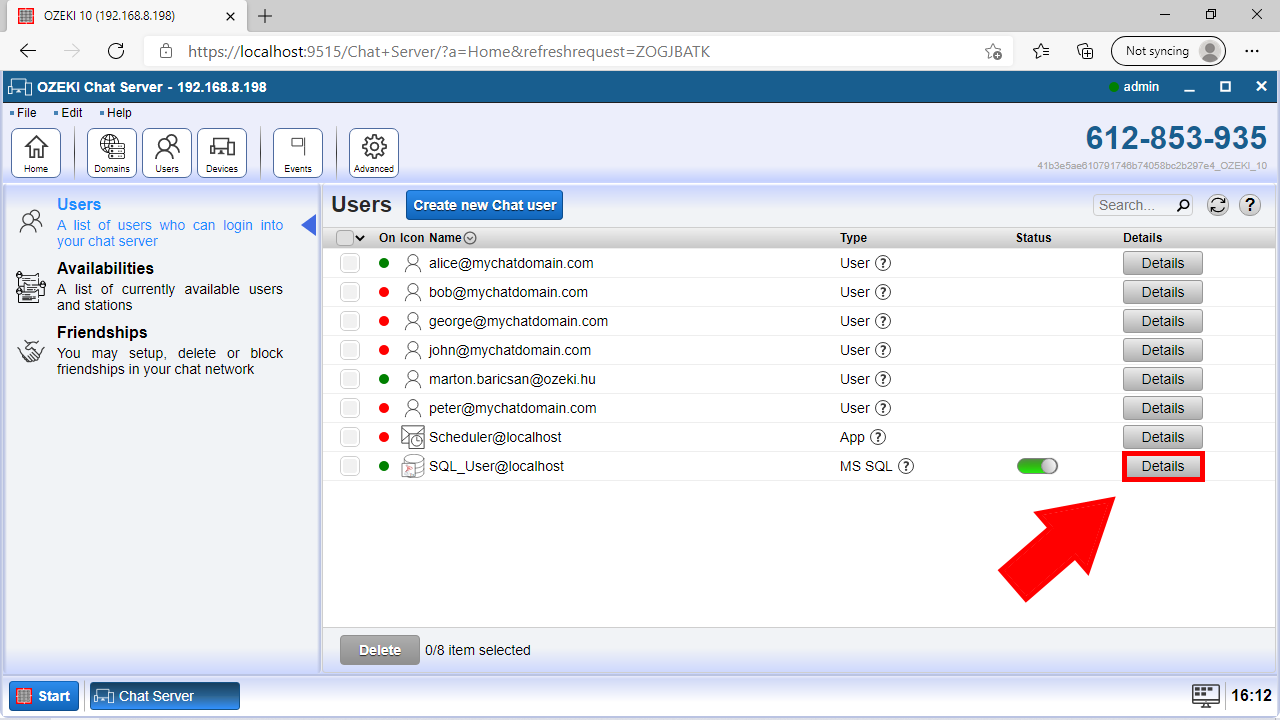

Now you need to find the user dedicated for the SQL Server. If you have found it, please click the details button located on next to the status indicator, to access the options of the user. You can find the button on Figure 2.

find the sql server connection
Figure 2 - Find the SQL Server connection

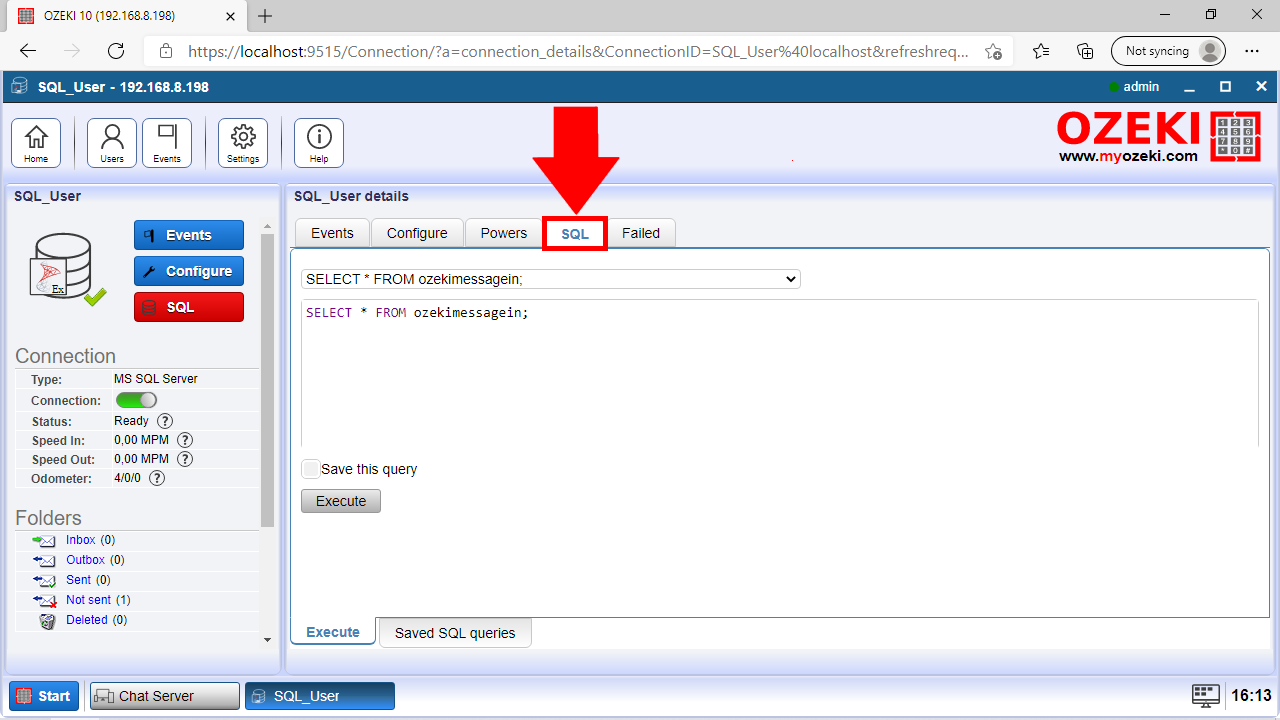

to give orders to the SQL user, you need to click the SQL button located next to the Powers title. You can find it using Figure 3. If you are on the SQL tab, you can execute SQL orders from here, which the User will carry out.

user details
Figure 3 - User details

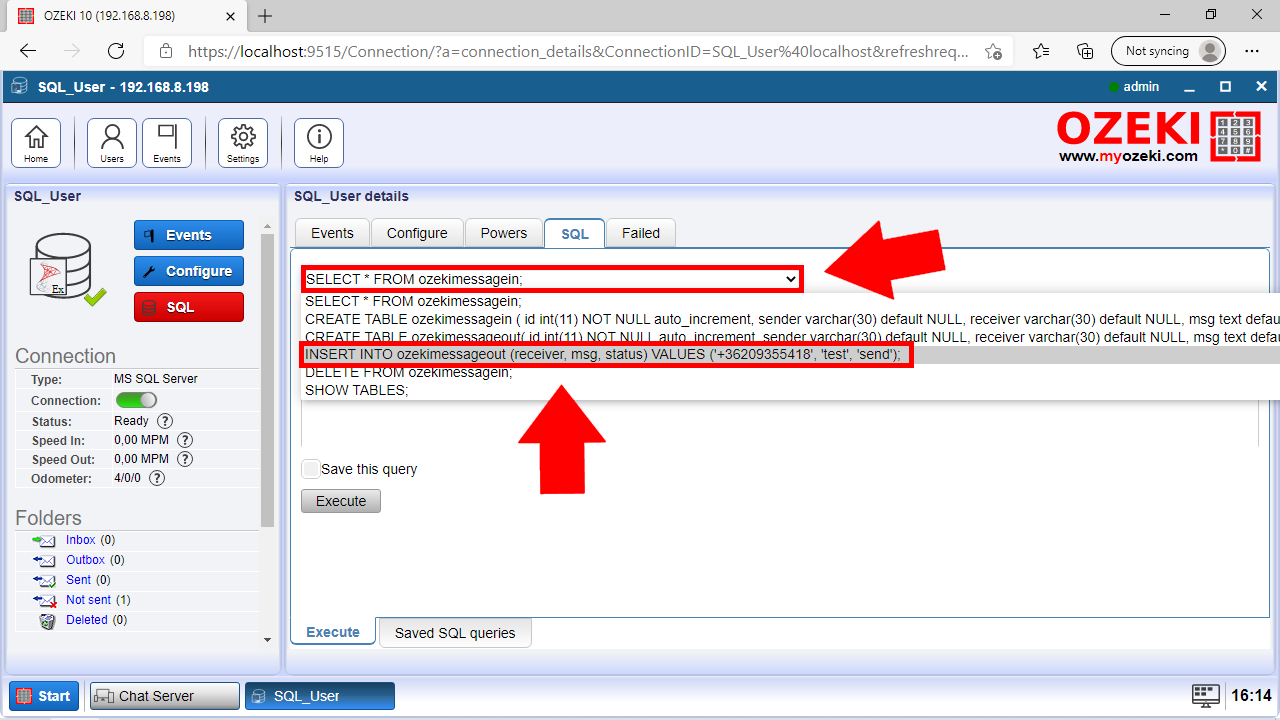

Now on the drop-down menu you can select the command you wish to execute. The menu executed under the tab, as you can see on Figure 4. Now to send a message, you need to choose the order highlighted on Figure 4.

choose the order
Figure 4 - Choose the order

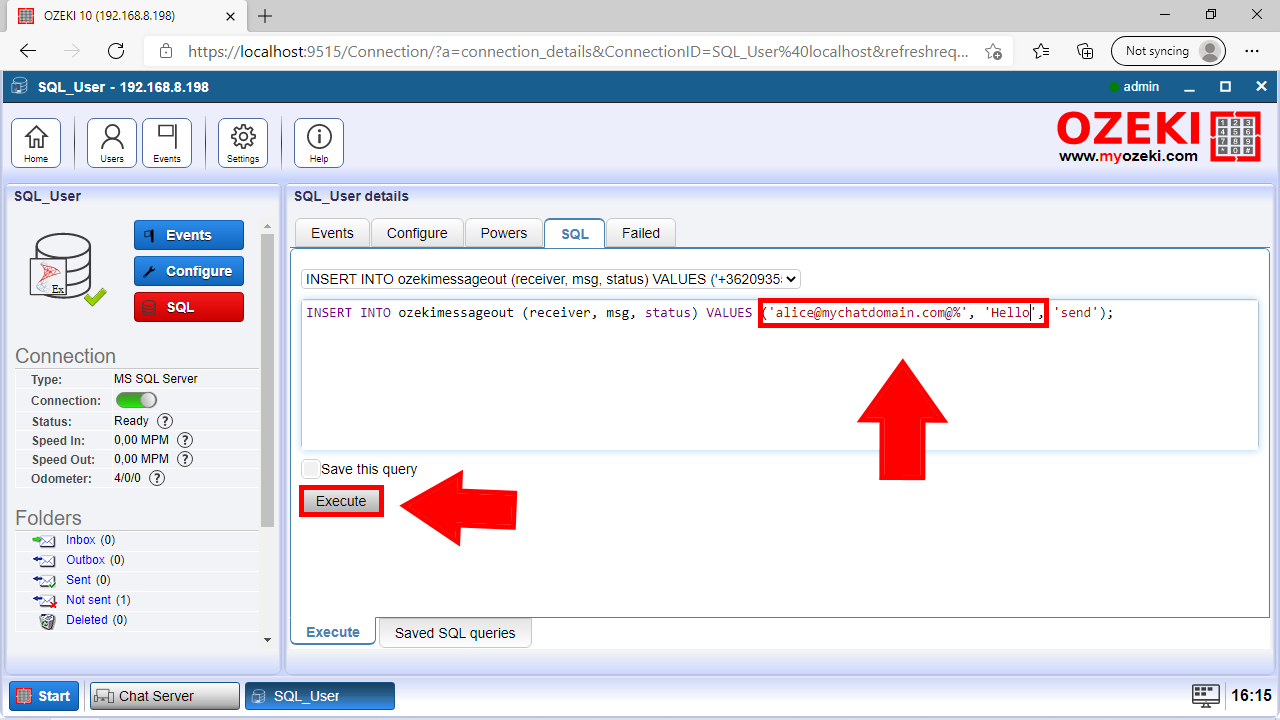

If you have selected the order, you just need to switch the addressee phone number with the chat address of the partner you wish to send the text to. You can do all your modification after the values variable in the code. First, you have the addressee of the message, than you have the message itself represented with Hello, on Figure 5.If you have everything ready, hit execute.

modify the message
Figure 5 - Modify the message

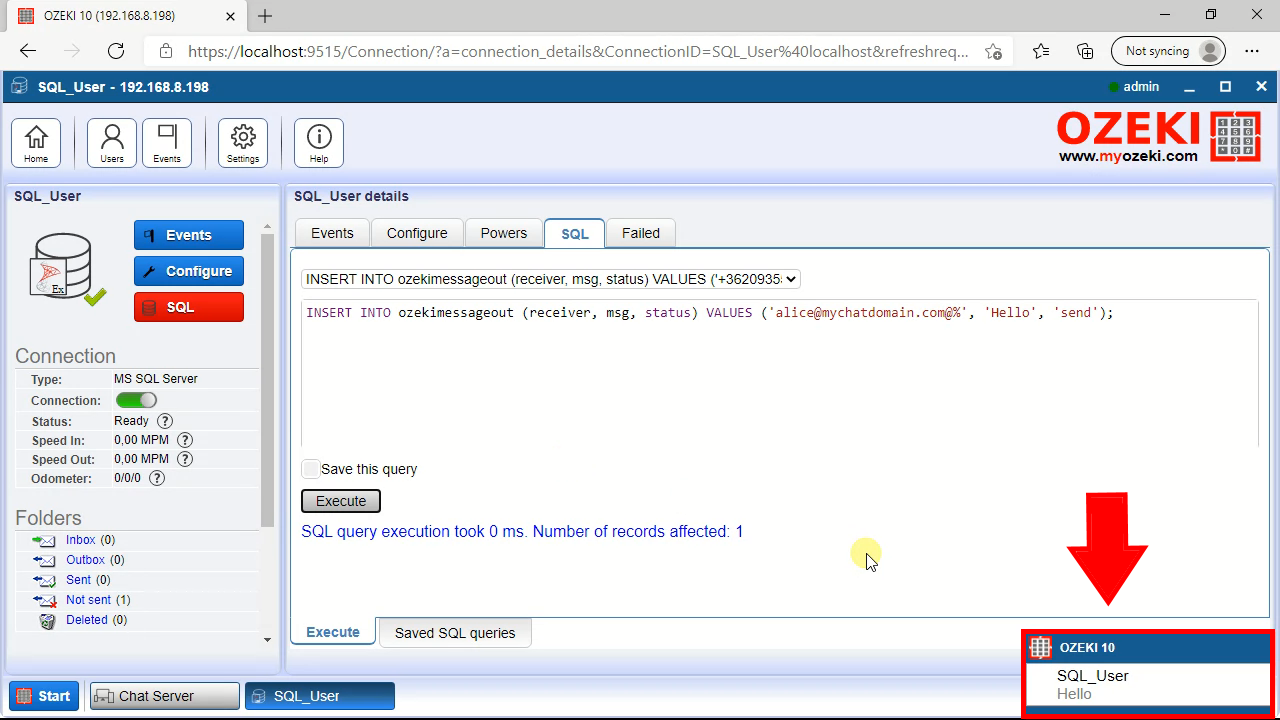

If you have done everything correctly, now you have pop-up notification saying that the SQL_User sent you a message. The message body will be Hello, if you have not changed that. You can see the notification on Figure 6.

get the test message
Figure 6 - Get the test message

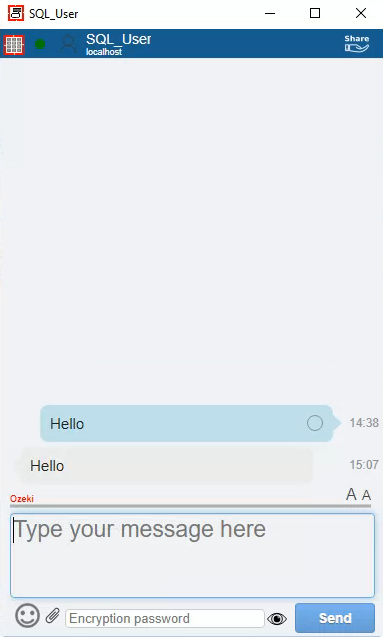

Now you can open the messages with the SQL_User and see all your past conversation. You can see the chat window on Figure 7.

have a conversation
Figure 7 - Have a conversation

We hope that this guide was helpfull. If you have any problem with any of the steps, feel free to contact us at info@ozeki.hu
